sensor statistics + nano 33 ble sense
#1
Hello,
I am trying to learn xml programming in order to build educational laboratory experiences for my students.

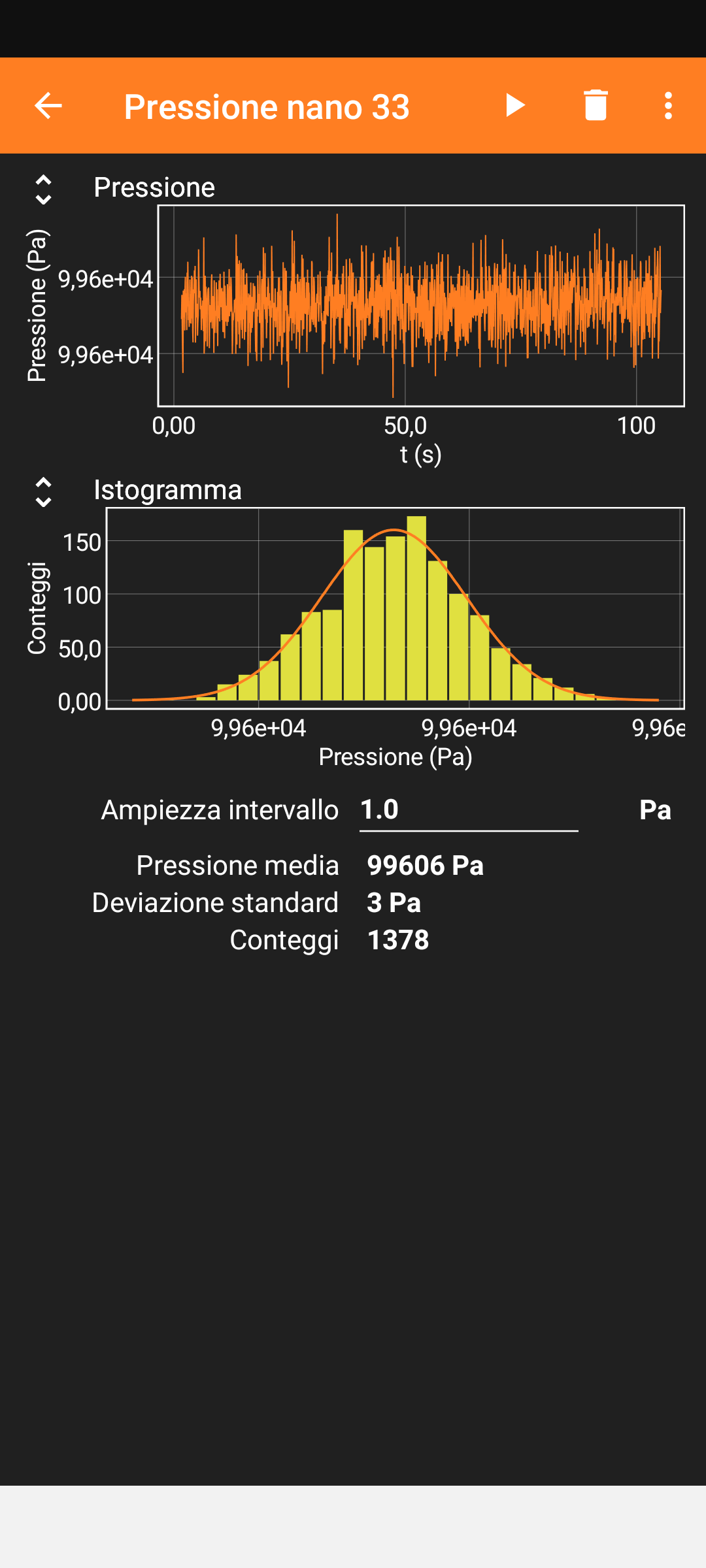

Using the solution from Sensor_Statistics (https://phyphox.org/wiki/index.php/Sensor_Statistics) and Gautier Creutzer's solution for nano 33 ble sense, I wrote a program to read the pressure sensor statistically.
I am attaching the sketch and the phyphox file, to find out if there are errors.
Thanks.

https://raw.githubusercontent.com/Andrea...x_vAD3.ino

https://raw.githubusercontent.com/Andrea...a2.phyphox


Attached Files Thumbnail(s)


.zip   nano_phyphox_vAD3 - Copia.zip (Size: 2.8 KB / Downloads: 248)
Reply
#2
Hello Andrea,
Pressure sensor of Arduino Nano Sense has a problem. See https://phyphox.org/forums/showthread.ph...70#pid2470
For a correct statistics you should not activate the motion sensor.
Reply
#3
Some version which may be useful. Only pressure sensor is activated in Arduino...




Attached Files
.phyphox   bar_arduino_nano2_stat.phyphox (Size: 5.43 KB / Downloads: 352)
.txt   bar_arduino_nano_fast.ino.txt (Size: 1.09 KB / Downloads: 351)
Reply
#4
Thanks for your help. But
I prefer to use a single sketch for multiple experiments.
As you suggested, I disabled the accelerometers (IMU.end ()) while reading the pressure.
Thank you again.


Attached Files Thumbnail(s)


.txt   nano_phyphox_vAD4.txt (Size: 9.84 KB / Downloads: 375)
Reply
